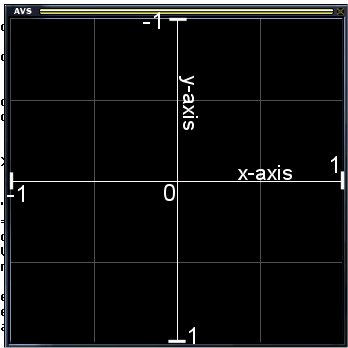

In order to get your superscope presets to show up, they must fit within the AVS display window. Thus, it is important to know how the AVS window is defined for the superscope. The image below shows the AVS display as if it were a graph to show the values that can be displayed in the AVS window.

Now that you can see the way the window has been laid out, you'll know what will fit within the AVS display. The first thing to note is that the window is from -1 to 1 for both x and y. This does not change, no matter how big or small the window is. Nor does it change if the window isn't square. Also, one should look at the y axis. The y-axis is defined from 1 at the bottom to -1 at the top (the opposite of what you might expect).

Now get back to the Superscope section for more.
